Napoleon New Redesigned Multi-Zone Ductless Inverter Heat Pump

Our Price: $2,421.00

Price with Selected Options: $2,421.00

Availability:: Usually Ships in 2 to 3 Weeks
Product Code: MULTIZONE

When it comes to Heating and Cooling options for year round use, the Napoleon New Redesigned Multi-Zone Inverter Heat Pump is a win-win for the entire family with each indoor unit offering individualized settings for each zone.

With the custom temperature settings this multi-zone system offers, everyone can enjoy their own comfort level.

The Napoleon multi-zone ductless units are sold as separate indoor and outdoor units, with the outdoor pumps (NMZO models) having the option to use a different amount of indoor heat pump heads (Cassette and/or NMHI models).

Please note: The Cassette models ship as two pieces.

A Multi-Zone unit offers different indoor and outdoor models based on each room size and installation requirements. Please note BTU’s, SEER ratings and dehumidifying levels will change depending on the models selected.

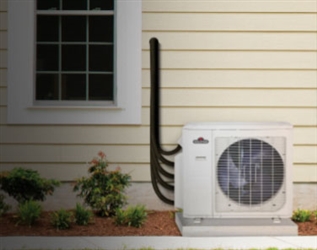

The image below is a reference of how the NMZO models (outdoor heat pumps) will work. Each NMZO model can be paired with different indoor heat pump heads (NMHI models) and vary how many heads can be used depending on model. The NMHI models can be wall mounted.

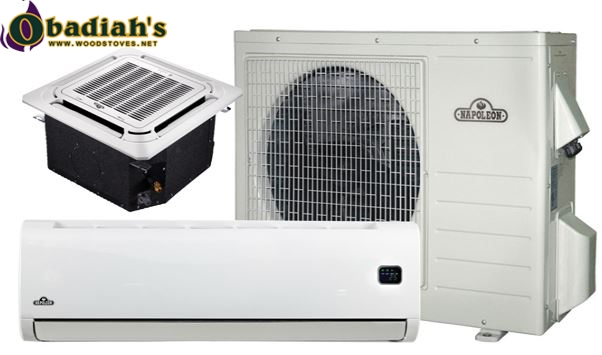

The image below is a reference of how the CASSETTE models look. The CASSETTE models can also be paired with the NMZO models (outdoor heat pumps) but these models are installed in the ceiling, not wall mounted like the NMHI models

Click the links below for more information:

Ductless Brochure

Ductless Specifications

NMZO Manual

NMHI Manual

CASSETTE Manual

Features

The Cassette (indoor heat pump head) and NHMI (indoor heat pump head) style models operate the same as the wall mounted units with one outdoor unit running to different indoor units. The indoor unit for the Cassette models is installed into a ceiling though, not wall mounted. Both Cassette and wall mounted units can be mixed and matched so you can create the heat pump system that works for you with the same convenience as other units due to the Napoleon remote control.

These features are for the NMHI models

16 SEER* (Seasonal Energy Efficiency Ratio) *Please note BTU’s and SEER ratings and dehumidifying levels will change depending on the models selected
9,000 BTU to 18,000 BTU models of heating and cooling capacity
Outdoor unit range from 27,000 to 36,000 BTU models to operate up to four indoor models
EER (Energy Efficiency Ratio) range from 12 to 12.4 in the series
Environmentally friendly chlorine-free refrigerant
WHISPER QUIET™ operation
Air filtration for fresh, clean air (NMHI Models Only)
Improved efficiency, a multi-bend evaporator within the indoor unit helps increase heat exchange surface (NMHI Models Only)
Turbo operation (NMHI Models Only)
Sleep mode, Maintain energy savings and comfort in night operation. Automatically increases cooling or decreases heating 1˚ C (1.8 ° F) per hour for the first two hours and then maintains temperature for the next five hours until it shuts off
Auto swing distributes air to the farthest reaches of your home by automatically moving the blades (NMHI Models Only)
Easy clean panel, front panel of indoor unit is detachable for easy cleaning (NMHI Models Only)
DC inverter high efficiency for lower fuel bills
LED display (NMHI Models Only)
Low ambient cooling, this allows the air conditioner to be used in outside temperatures as low as 15˚ C (34°F). This feature prevents the evaporator from freezing and will prolong the life of the product and save energy.
Different from the cooling operation, the independent dehumidification mode efficiently removes humidity from the space without lowering the temperature.
When the heat mode is started the fan speed is automatically regulated from the lowest level to the preset level according to the temperature rising of the evaporator
On Cassette models the built-in drain pump lifts the condensing water 750mm
A temperature sensor is built-in the remote control so when you stay close to the remote, the unit will automatically change the operation mode to supply the desired temperature, just as if the unit is following you
